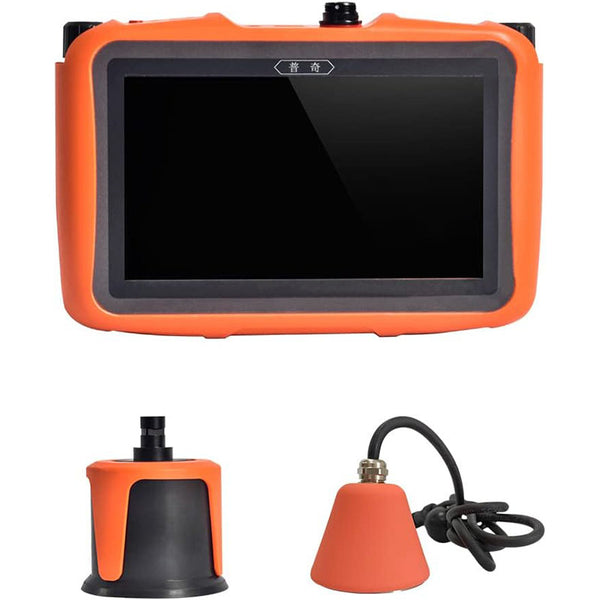

PQWT-L5000 Water Pipeline Leak Detector

The PQWT-L5000 is a multi-sensor water pipeline leak detector for acoustic inspection of pressurized pipes. It helps an operator listen for and compare the vibration created by escaping water, narrow a suspected section and perform a closer verification before repair work begins.

Rather than replacing site knowledge, the instrument organizes the listening process. General detection is used to screen a larger route; locating and frequency-analysis functions are then used to compare nearby points. The objective is to reduce unnecessary excavation by building a consistent body of evidence around the most probable leak zone.

• Concealed supply pipes in homes, hotels, schools and commercial buildings
• Buried outdoor service lines, distribution branches and facility networks
• Metal and non-metal pressure pipes, with sensitivity depending on material and site conditions
• Preventive inspection when abnormal water loss or pressure drop has been observed

Start by confirming the pipe route, material, diameter, approximate burial depth and operating pressure. Close or identify pumps, valves and other mechanical noise sources where possible. A quiet baseline makes later comparisons more reliable.

Scan accessible contact points and the suspected route at regular intervals. Keep sensor placement, contact pressure and filter settings consistent. When the sound level or spectrum changes, reduce the spacing, repeat the measurement from both directions and compare the suspected point with nearby control points.

• Confirm the route and establish a reference sound away from the suspected leak
• Use broad screening first; do not begin with a single isolated reading
• Narrow the interval and compare sound strength, quality and frequency behavior
• Repeat at a different time or operating condition when traffic or machinery interferes
• Mark a repair zone only after the signal is repeatable and fits the pipe layout

Acoustic performance depends on the energy created by the leak and how that energy travels through the pipe, water, fittings, soil and surface. Higher pressure, rigid pipe walls and firm sensor contact often produce clearer signals. Soft plastic pipe, low pressure, very small leakage, deep burial or loose backfill can attenuate the sound.

Traffic, pumps, air-conditioning systems, electrical equipment and flowing drains may imitate or mask leak noise. A skilled operator checks whether the sound is stable, follows the pipe route and becomes strongest in a logical area. For difficult plastic-pipe or low-pressure work, tracer gas, a correlator or pressure testing may be used as a complementary method.

The correct proposal depends on the network, not only the product name. Send the project details below so the sales and technical team can confirm whether the L5000 is suitable, which accessories are required and whether an additional locating method should be considered.

• Indoor or outdoor application and the approximate survey length
• Pipe material, diameter, burial depth and normal operating pressure
• Known symptoms: water loss, pressure drop, wet area or continuous meter movement
• Surface type and local noise conditions
• Destination country, required quantity and preferred training language

The formal quotation confirms the instrument configuration, accessories, export price, shipping method and estimated lead time. Because packages can vary by destination and project, use the quotation and packing list as the final reference for included items.

PQWT provides operating guidance, remote training and technical support. The standard product warranty is two years. For the first field job, prepare several known pipe points and a controlled comparison area so the operator can learn how local pipe material and background noise appear on the instrument.
